起源の場所:
中国
ブランド名:
Hengyang
証明:
ISO901
モデル番号:
HC600

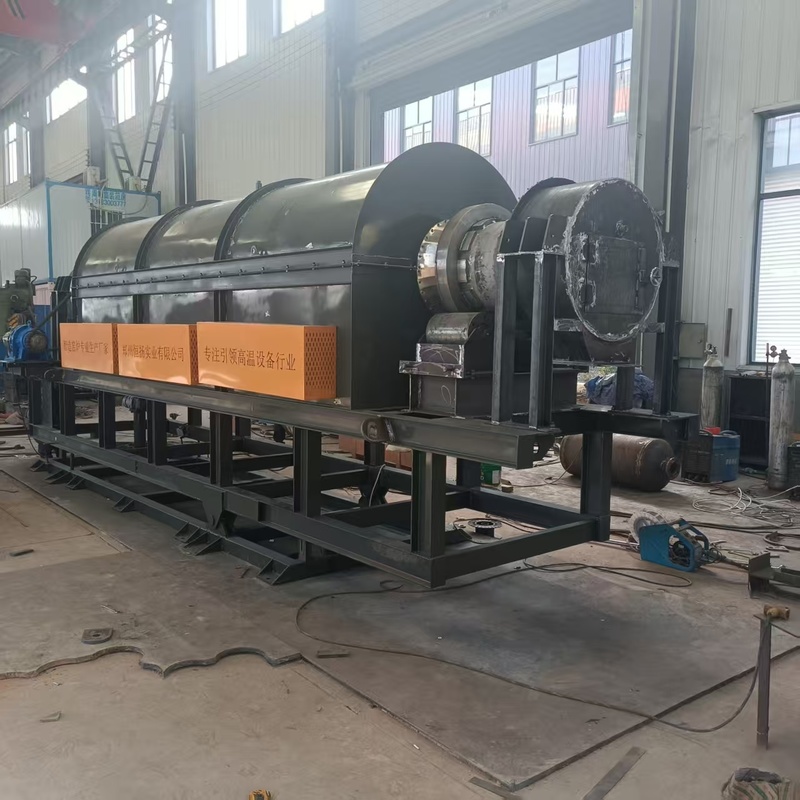

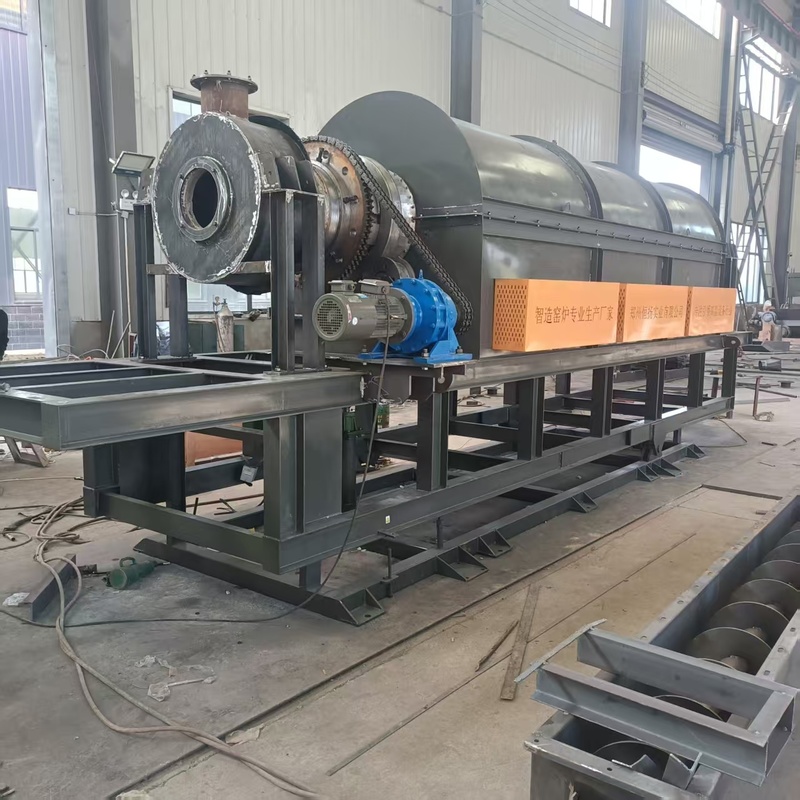

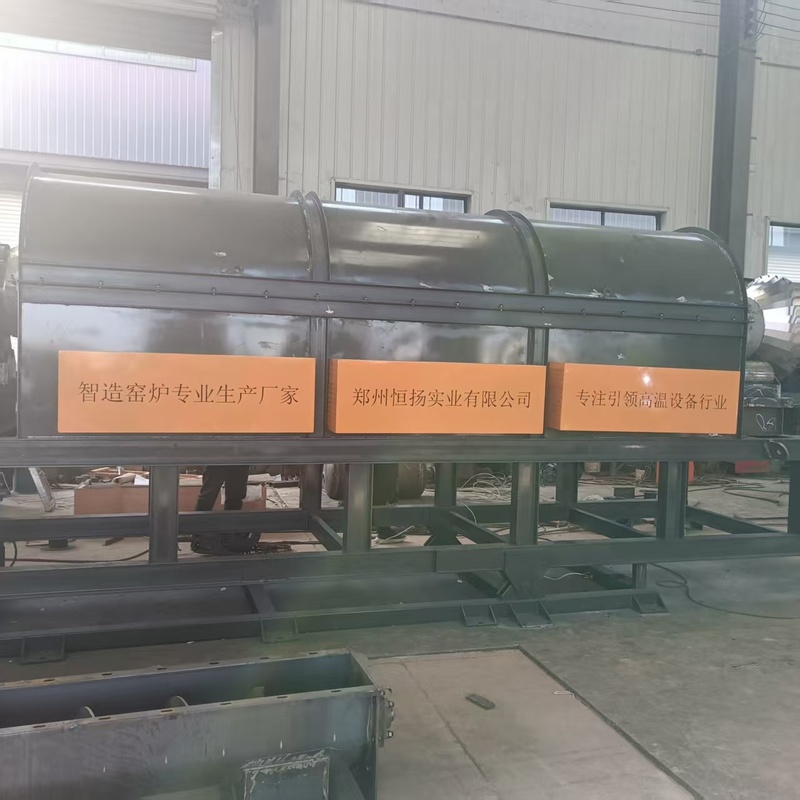

Our electrically heated indirect rotary kilns provide a versatile thermal treatment solution for processes up to 1050°C. These kilns are particularly effective for beta spodumene to lithium sulphate conversion, supporting carbon footprint reduction and carbon capture initiatives where process CO2 emissions are a concern.
Our indirect rotary kilns accommodate diverse raw materials including alumina, bauxite, vanadium salts, and specialized applications like beta spodumene treatment in lithium processing. Available in sizes from 1m to 20m diameter and up to 90m length, we also offer natural gas heating options for lower-temperature applications where electric heating isn't viable.
| Model | Diameter (cm) | Length of heating section (mm) | Capacity (t/h) | Temperature (℃) | Power (kw) | Weight (t) |
|---|---|---|---|---|---|---|
| Φ0.8×8m | 800 | 6000 | 0.5-1.0 | 400-1200 | 5.5 | 8 |
| Φ1.0×10m | 1000 | 8000 | 0.8-1.2 | - | 7.5 | 9.5 |
| Φ1.2×12m | 1200 | 10000 | 1.2-1.6 | - | 11 | 14.5 |
| Φ1.2×15m | 1200 | 13000 | 1.5-1.9 | - | 15 | 15.5 |
| Φ1.5×14m | 1500 | 12000 | 2.0-2.7 | - | 15 | 27 |
| Φ1.5×16m | 1500 | 14000 | 2.8-3.0 | - | 18.5 | 27.5 |
| Φ1.8×20m | 1800 | 16000 | 3.2-3.6 | - | 22 | 38 |
| Φ2×12m | 2000 | 10000 | 3.0-3.5 | - | 18.5 | 45 |
| Φ2×15m | 2000 | 13000 | 3.2-3.8 | - | 22 | 50 |
| Φ2.2×16m | 2200 | 14000 | 3.5-4.2 | - | 30 | 62 |
| Φ2.2×18m | 2200 | 16000 | 3.5-4.5 | - | 30 | 65 |
The rotary kiln is a rotating cylindrical vessel designed for continuous drying, calcination, and sintering processes using hot gases. Our Hengyang rotary kiln and sponge iron rotary kiln feature advanced technology including variable speed drives, process automation, and instrumentation for optimal operational control. The design incorporates superior inlet and outlet sealing to minimize false air entry.
