Gold Cip Production Line

gold CIP processing plant

metallurgy gold extraction line

CIP gold recovery system

起源の場所:

中国

ブランド名:

hengyang

証明:

ISO9001

モデル番号:

金の採掘

連絡ください

引金を求めてください

製品詳細

OEM:

受け入れる

状態:

新しい

保証:

12ヶ月

応用:

ロックゴールド

使用法:

鉱物採掘

支払いと送料の条件

最小注文数量

価格

35000-95700USD/set

パッケージの詳細

交渉

受渡し時間

25〜40日

支払条件

T/T

供給の能力

30セット/月

Gold Processing Leaching CIL Plant

最高の価格を入手する

Rock Gold Ore Gravity Separation Processing Plant

最高の価格を入手する

We deliver more than just machinery; we provide a comprehensive, worry-free gold recovery solution from feed to final product. Based on the proven and efficient CIP (Carbon-in-Pulp) / CIL (Carbon-in-Leach) process, this 500-ton per day plant is engineered for large-scale operations, ensuring stable, high-yield, and effortless performance for our clients worldwide.

Working Principle: Maximizing Recovery Through Engineered Efficiency

The core of our plant lies in the "adsorption" and "elution" process. After fine grinding and cyanidation, the gold-bearing slurry flows through our optimized series of adsorption tanks. Here, activated carbon acts as the "gold hunter," efficiently capturing the gold-cyanide complex. The loaded carbon is then transferred to the elution and electro-winning system, where gold is stripped and deposited as high-purity sludge, ready for smelting into gold bars.

Recovery Rate: > 95%

Investment Return: 6-10months

A. Crushing and Screening
Raw ore is fed into a vibrating feeder and then crushed by a jaw crusher.

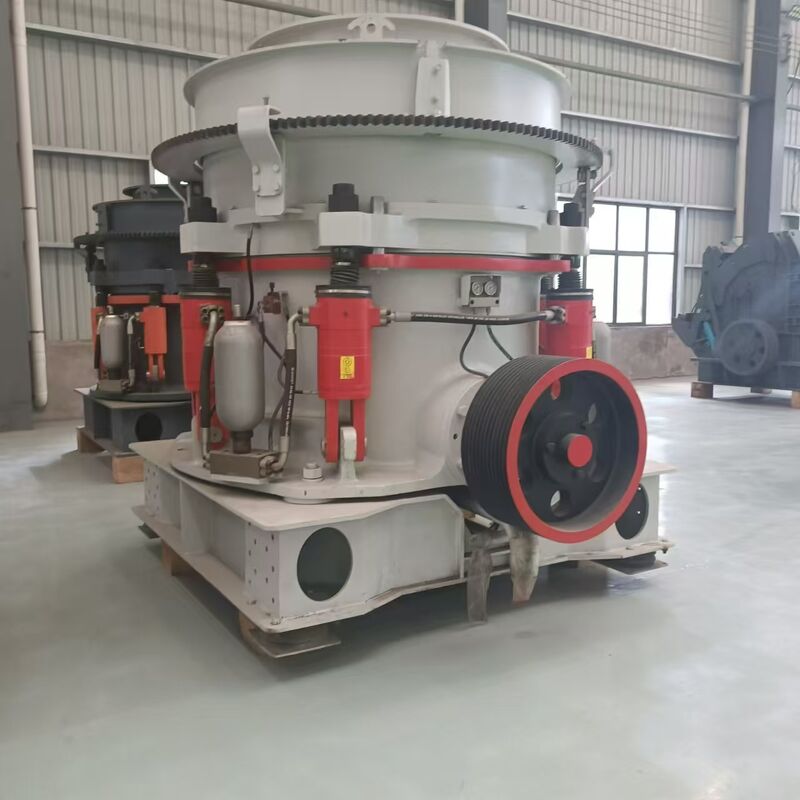

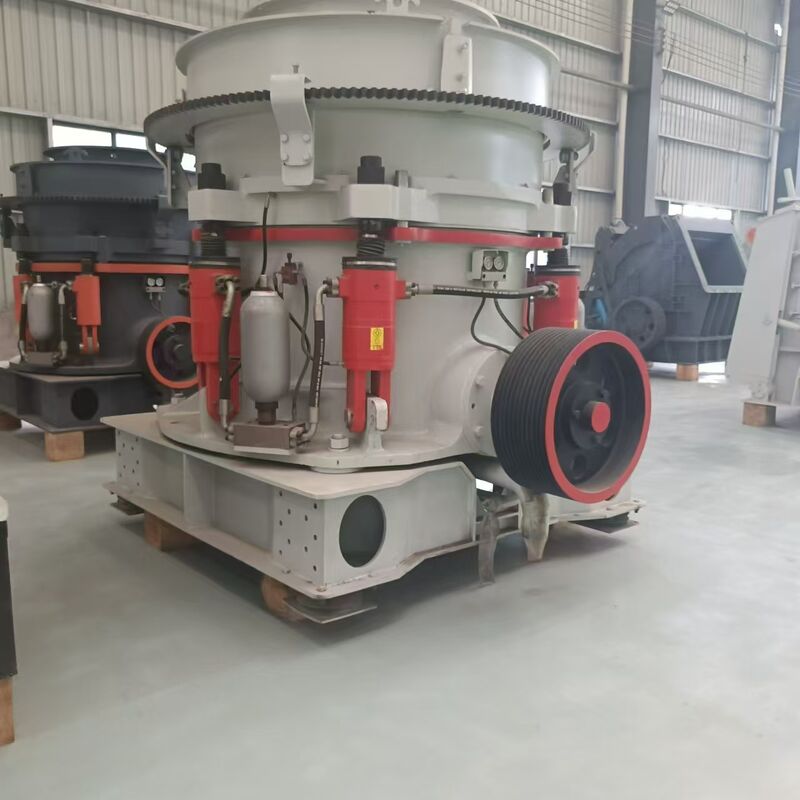

The crushed ore is further processed by cone crushers (coarse and fine crushing).
After crushing, the ore is screened, and oversize materials are returned to the crushers in a closed-circuit system.
B. Leaching and Adsorption
The slurry enters 8 leaching tanks. Sodium cyanide is added in the first tank, and activated carbon is added from the second to the eighth tank.
Gold is adsorbed by carbon through a counter-current flow system. Gold-loaded carbon is separated, cleaned, and sent to the desorption & electrolysis system.
C. Tailings Water Treatment
Tailings slurry is pumped to a filter press for solid-liquid separation.
* Solid tailings are discharged and transported to the yard
* Water is recycled back into the system
D. Gold-Loaded Carbon Treatment
Gold-loaded carbon is processed by desorption & electrolysis to produce gold dust.
The gold dust is smelted into gold bars in a melting furnace.
