起源の場所:
中国
ブランド名:
hengyang
証明:
ISO9001
モデル番号:
B型コンベヤ

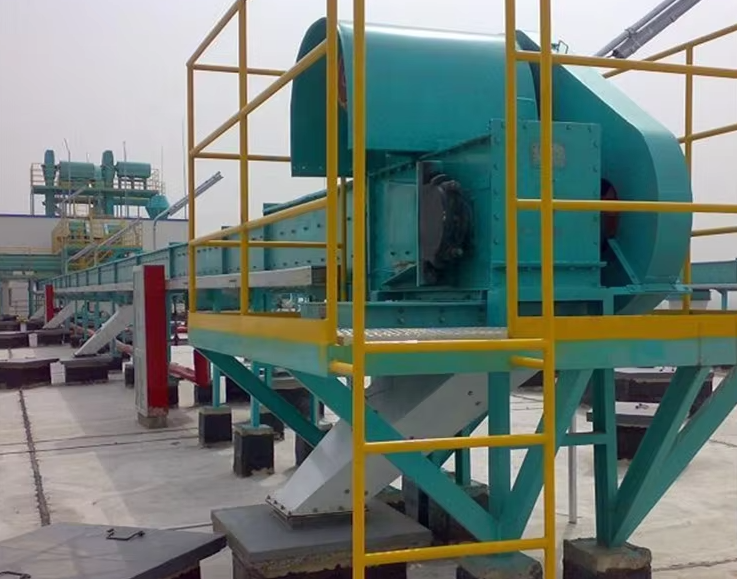

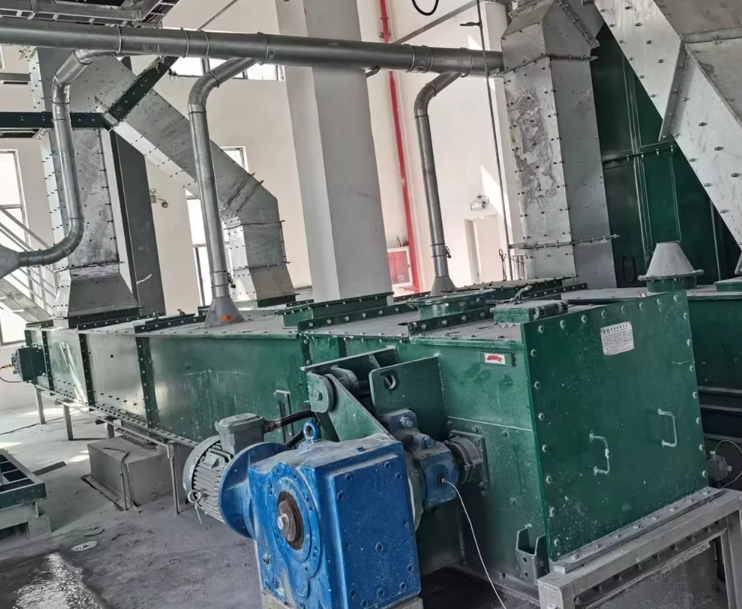

Drag Chain Conveyor is bulk material conveying equipment, which consists of head section with driving device, middle casing, tail section, tension device, as well as scraper chains. MS buried scraper conveyor is widely used in cement plant, coal, metallurgy, mining, light, construction, chemical, grain, power industries etc.
|
Technical Details
|
||||||
|
Type
|
MS16
|
MS20
|
MS25
|
MS32
|
MS40
|
|
|
Trough Width
|
160
|
200
|
250
|
320
|
400
|
|
|
Allowed Material Density Range
|
0.2-2.5t/m³
|
|||||
|
Max.Conveying Distance
|
120m
|
|||||
|
Conveying Capacity
|
speed m/s
|
0.16
|
0.16
|
0.16
|
0.16
|
0.16
|
|
capacity m³/h
|
15
|
23
|
36
|
59
|
83
|
|
|
speed m/s
|
0.2
|
0.2
|
0.2
|
0.2
|
0.2
|
|
|
capacity m³/h
|
18
|
29
|
45
|
74
|
104
|
|
|
speed m/s
|
0.25
|
0.25
|
0.25
|
0.25
|
0.25
|
|
|
capacity m³/h
|
23
|
36
|
56
|
92
|
130
|
|
|
speed m/s
|
0.32
|
0.32
|
0.32
|
0.32
|
0.32
|
|
|
capacity m³/h
|
29
|
46
|
72
|
118
|
166
|
|
