起源の場所:
中国
ブランド名:
hengyang
証明:
ISO9001

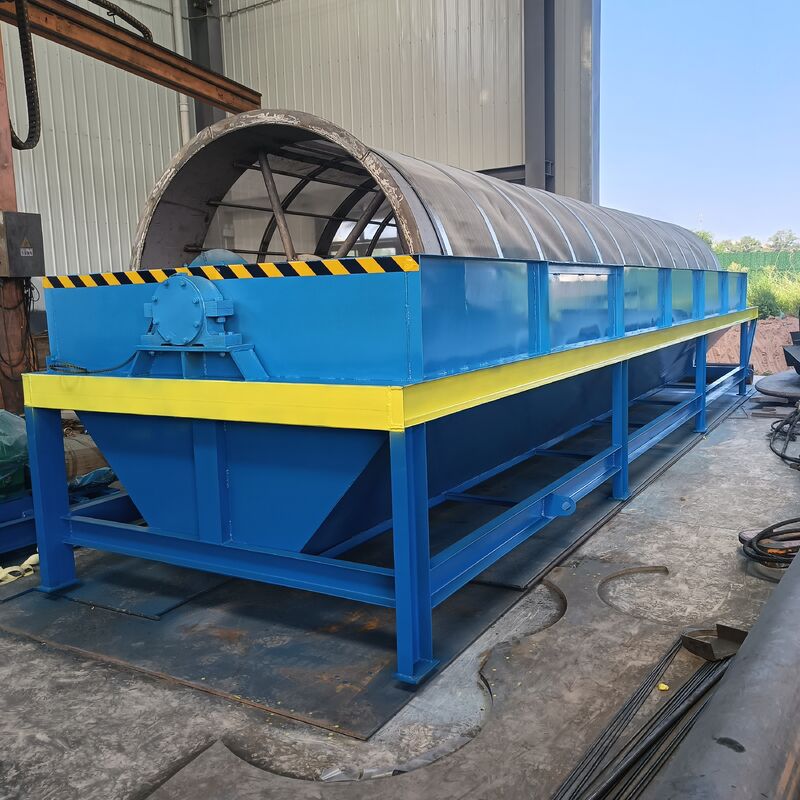

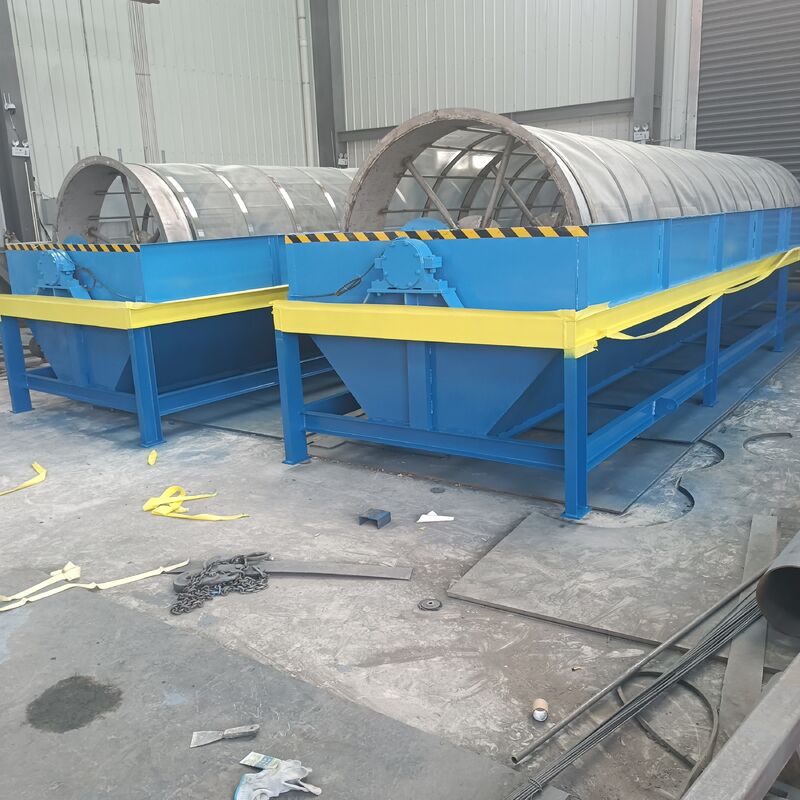

Rotary drum screen, also known as rotary screen, drum screen, rotary screen, serves as a "filtering core" within rotar drum flters, commonly fabricated to a welded stainless steel construction. Its material can be customized as needed - for instance. Selecting SS 904L or duplex 2205/2507 to withstand seawater corrosion, or opting for economical & durable Nylon mesh.
At Hengyang industry, screen types are diverse, encompassing the most frequently used wedge wire screens, woven wire meshes, as well as perforated plates. We'll pick the most suitable option fully based on your application requirements involving fitration accuracy,flow rate...Some specialized drum screens also incorporate pleated design to significantly increase filtration areas.
Application
Technical Details
|
Model |
Capacity(t/h) |
Power(kw) |
Drum diameter(mm) |
Screen size(mm) |
Dimension(mm) |
Weight(kg) |
|
1015 |
10-15 |
4.0 |
1000 |
＜3-10 |
3000*1400*2145 |
2200 |
|
1020 |
15-25 |
5.5 |
1000 |
＜3-10 |
3460*1400*2145 |
2800 |
|
1225 |
25-40 |
7.5 |
1200 |
＜3-10 |
4146*1600*2680 |
4200 |
|
1530 |
60-80 |
11 |
1500 |
＜3-10 |
4460*1900*2820 |
5100 |
|
1545 |
80-150 |
15 |
1500 |
＜3-10 |
5960*1900*3080 |
6000 |
|
1848 |
150-200 |
22 |
1800 |
＜3-10 |
6500*2300*4000 |
7500 |
問い合わせを直接私たちに送ってください.
