起源の場所:
中国
ブランド名:
hengyang
証明:
ISO9001
モデル番号:
HYSCシリーズ
Rotary Scrubbers are designed primarily for the removal of loam and light clays and soft, soluble waste materials from aggregates, stone and ore. These units are not intended to replace Log Washers on applications where tough plastic clays are contaminating the material to be cleaned. When these tough clays are fed to a Scrubber, the clay particles may have a tendency to pelletize through the tumbling action of the material. For example, golf ball-sized pieces of plastic clay may not break down and could actually increase in size.
Rotary Scrubbers and Coarse Material Screw Washers are often selected to wash out similar contaminants from aggregate and various ores. The major difference is that Scrubbers can accept larger feed sizes, whereas Coarse Material Screw Washers must have a controlled top size. Since large diameter Scrubber Screens can handle feeds up to 300mm or 12”, they are sometimes used as a primary washer before downstream crushing or screening systems.

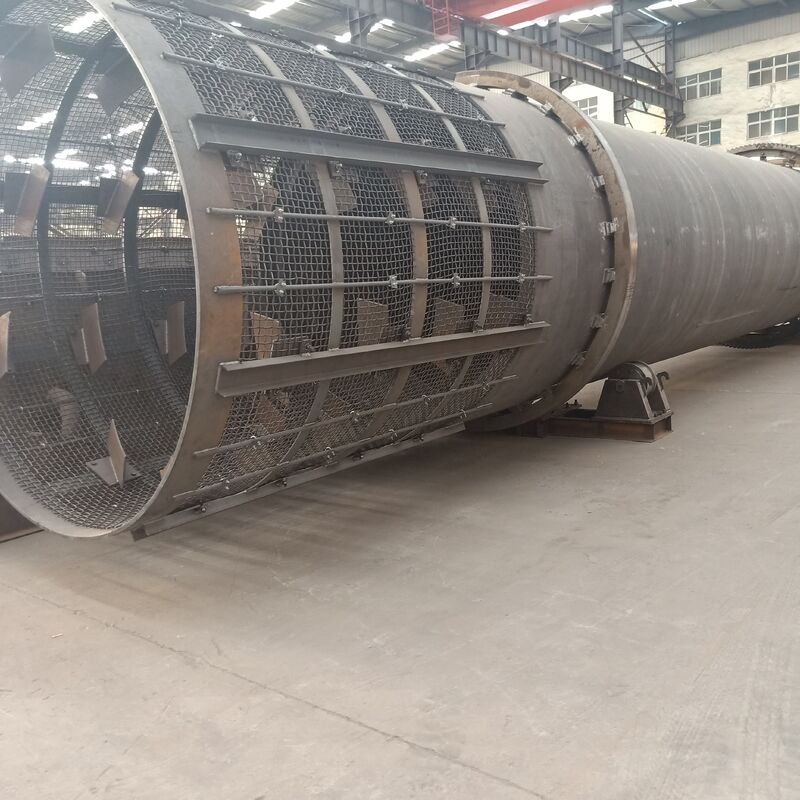

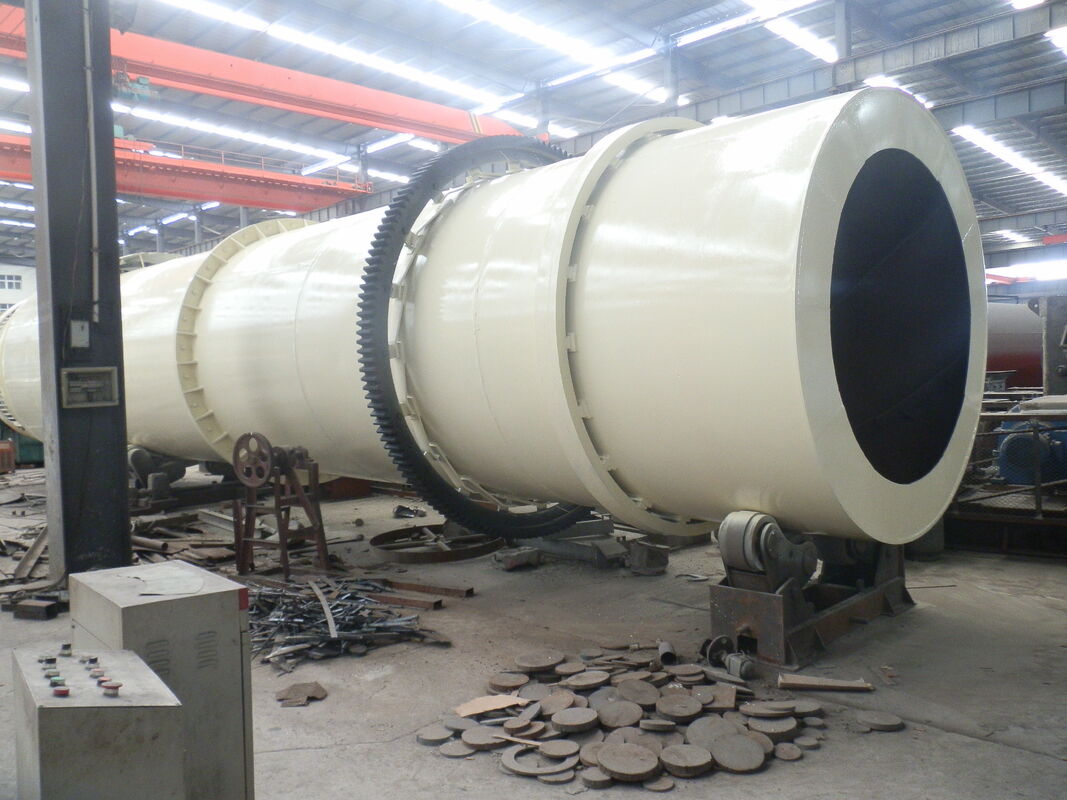

Hengyang Rotary Scrubbers are cylindrical drums with internal lifters, typically supported by trunnion rollers at either end. The continuous lifting and dropping action combined with water helps to abrade, scrub, and break down soluble contaminants. Optional trommel screen extensions can be added to provide rough product separation, screening and dewatering capabilities.
Capacities are normally determined by analyzing the type of feed material, percent and type of waste material to be removed, screen analysis of the feed, available water and if specified, retention time. Retention time in a Rotary Scrubber varies from application to application due to different types and varying amounts of wastes to be removed.
Technical Details
|
Model |
Drum Dia (mm) |
Drum & Screen Length (m) |
Screen Mesh Size (mm) |
Rotation Speed (r/min) |
Feeding Size (mm) |
Angle of Inclination(°) |
Capacity (t/h) |
Power (kW) |
|
HYSC-400 |
400 |
2m+1.2m |
≤20 |
27.9 |
≤80 |
≤10 |
1-5 |
3 |
|
HYSC-600 |
600 |
2m+1.2m |
≤25 |
27.6 |
≤80 |
≤10 |
5-10 |
4 |
|
HYSC-750 |
750 |
2.5m+1.5m |
≤25 |
27.6 |
≤100 |
≤10 |
10-20 |
5 |
|
HYSC-900 |
900 |
3m+1.8m |
≤25 |
27.6 |
≤100 |
≤10 |
20-40 |
11 |
|
HYSC-1200 |
1200 |
4m+2m |
≤25 |
17 |
≤100 |
≤10 |
40-70 |
15 |
|
HYSC-1500 |
1500 |
4m+2m |
≤50 |
16 |
≤100 |
≤10 |
70-100 |
30 |
|
HYSC-1800 |
1800 |
4m+2m |
≤50 |
16 |
≤100 |
≤10 |
100-150 |
18.5*2 |
|
HYSC-2100 |
2100 |
4m+2m |
≤50 |
16 |
≤1000 |
≤10 |
150-200 |
22*2 |
|
HYSC-2400 |
2400 |
6m+2.5m |
≤50 |
16 |
≤100 |
≤10 |
200-250 |
22*4 |
|
HYSC-2700 |
2700 |
6m+2.5m |
≤50 |
16 |
≤100 |
≤10 |
250-270 |
55*2 |
|
HYSC-3000 |
3000 |
6m+2.5m |
≤50 |
16 |
≤100 |
≤10 |
270-300 |
30*4 |
|
HYSC-3200 |
3200 |
6m+2.5m |
≤50 |
16 |
≤100 |
≤10 |
300-340 |
37*4 |
|
HYSC-3400 |
3400 |
6m+2.5m |
≤50 |
16 |
≤100 |
≤10 |
340-370 |
45*4 |
|
HYSC-3600 |
3600 |
6m+2.5m |
≤50 |
16 |
≤100 |
≤10 |
370-400 |
55*4 |
