起源の場所:
中国
ブランド名:
hengyang
証明:
ISO9001
モデル番号:
HYSCシリーズ
Rotary Stone Washer offer significant advantages with their trommel design that effectively combines washing and screening functions, delivering high production capacities ranging from 1 to 250 tons per hour while maintaining low operating costs, easy maintenance, and quiet operation. These versatile machines feature fully customizable specifications including drum length/diameter, screen mesh configuration, layer counts, liner plates, mobility options (portable or stationary), and drive tire materials to suit various applications – from small-scale gold wash plants to mini gold trommel operations. The system’s efficient washing is further enhanced by internal water spray pipes and smooth rubber-tired drive mechanisms for reliable performance.
✔ High Efficiency: Removes >80% of sludge, ideal for clay-rich ores.
✔ Robust Structure: Easy maintenance with wear-resistant linings for extended service life.
✔ Multifunctional: Combines washing, grading, and de-sliming, reducing downstream processing load.

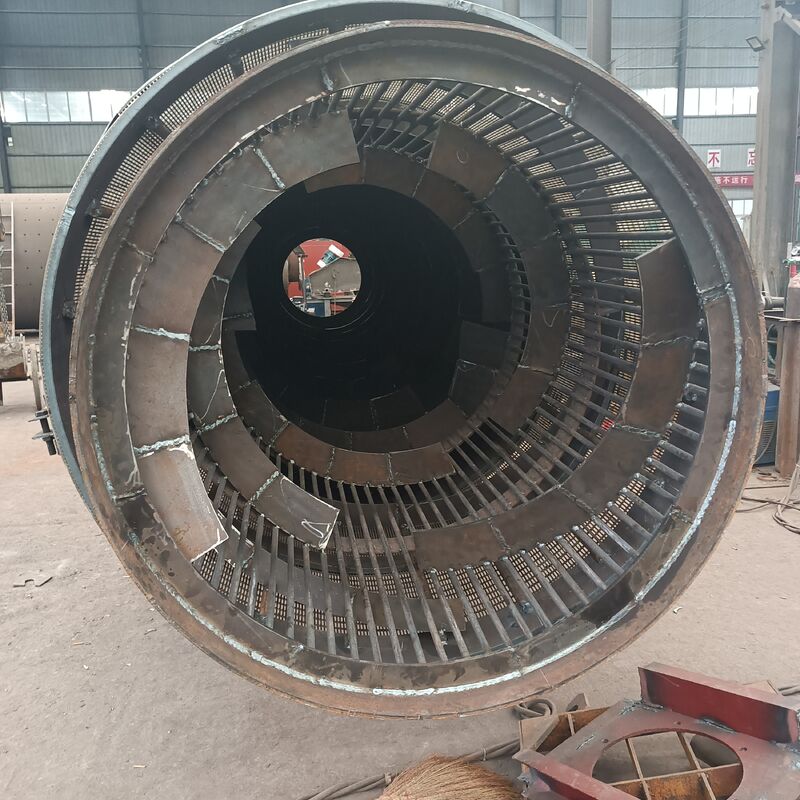

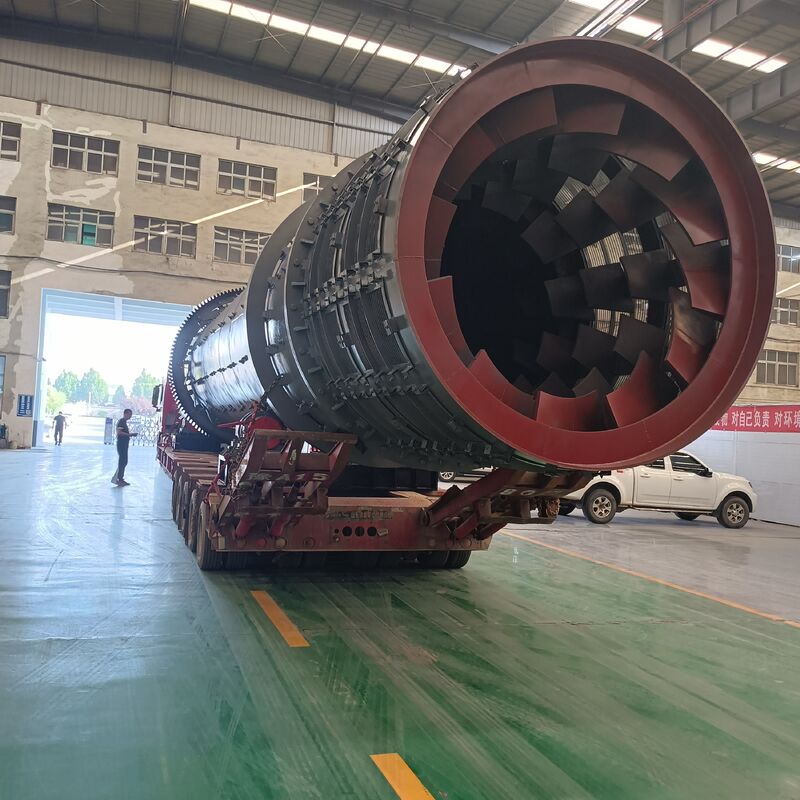

Hengyang Rotary Scrubbers are cylindrical drums with internal lifters, typically supported by trunnion rollers at either end. The continuous lifting and dropping action combined with water helps to abrade, scrub, and break down soluble contaminants. Optional trommel screen extensions can be added to provide rough product separation, screening and dewatering capabilities.
Technical Details
|
Model |
Drum Dia (mm) |
Drum & Screen Length (m) |
Screen Mesh Size (mm) |
Rotation Speed (r/min) |
Feeding Size (mm) |
Angle of Inclination(°) |
Capacity (t/h) |
Power (kW) |
|
HYSC-400 |
400 |
2m+1.2m |
≤20 |
27.9 |
≤80 |
≤10 |
1-5 |
3 |
|
HYSC-600 |
600 |
2m+1.2m |
≤25 |
27.6 |
≤80 |
≤10 |
5-10 |
4 |
|
HYSC-750 |
750 |
2.5m+1.5m |
≤25 |
27.6 |
≤100 |
≤10 |
10-20 |
5 |
|
HYSC-900 |
900 |
3m+1.8m |
≤25 |
27.6 |
≤100 |
≤10 |
20-40 |
11 |
|
HYSC-1200 |
1200 |
4m+2m |
≤25 |
17 |
≤100 |
≤10 |
40-70 |
15 |
|
HYSC-1500 |
1500 |
4m+2m |
≤50 |
16 |
≤100 |
≤10 |
70-100 |
30 |
|
HYSC-1800 |
1800 |
4m+2m |
≤50 |
16 |
≤100 |
≤10 |
100-150 |
18.5*2 |
|
HYSC-2100 |
2100 |
4m+2m |
≤50 |
16 |
≤1000 |
≤10 |
150-200 |
22*2 |
|
HYSC-2400 |
2400 |
6m+2.5m |
≤50 |
16 |
≤100 |
≤10 |
200-250 |
22*4 |
|
HYSC-2700 |
2700 |
6m+2.5m |
≤50 |
16 |
≤100 |
≤10 |
250-270 |
55*2 |
|
HYSC-3000 |
3000 |
6m+2.5m |
≤50 |
16 |
≤100 |
≤10 |
270-300 |
30*4 |
|
HYSC-3200 |
3200 |
6m+2.5m |
≤50 |
16 |
≤100 |
≤10 |
300-340 |
37*4 |
|
HYSC-3400 |
3400 |
6m+2.5m |
≤50 |
16 |
≤100 |
≤10 |
340-370 |
45*4 |
|
HYSC-3600 |
3600 |
6m+2.5m |
≤50 |
16 |
≤100 |
≤10 |
370-400 |
55*4 |
