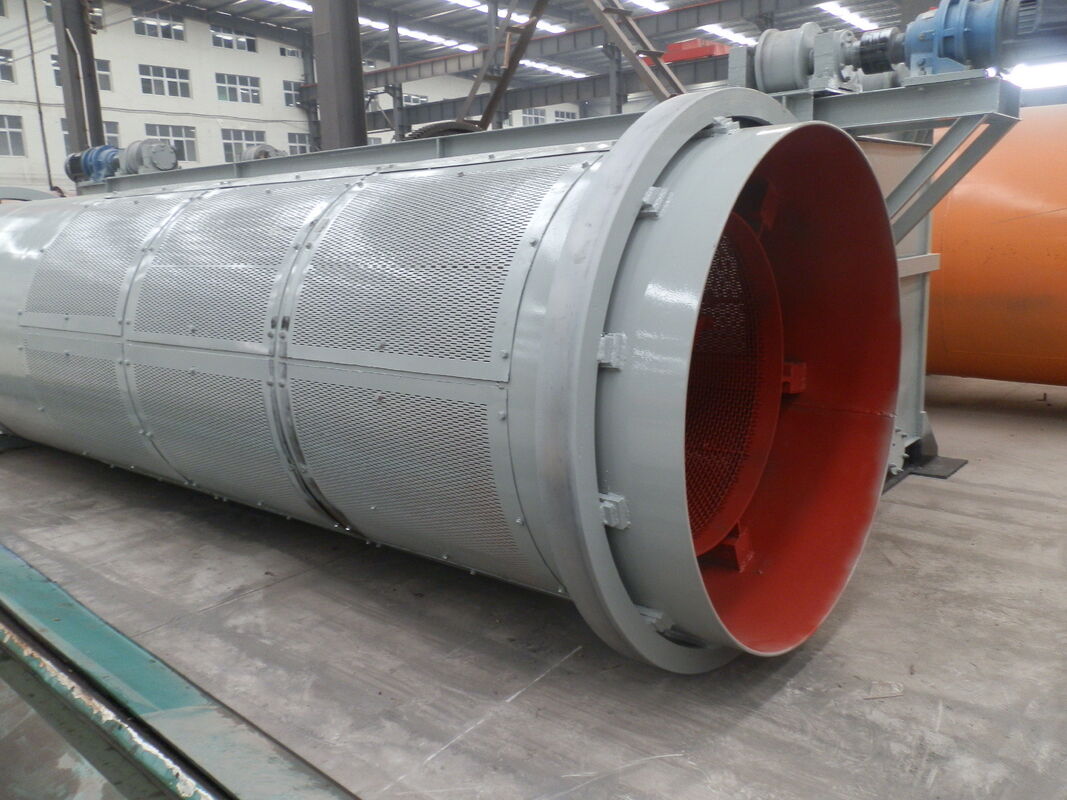

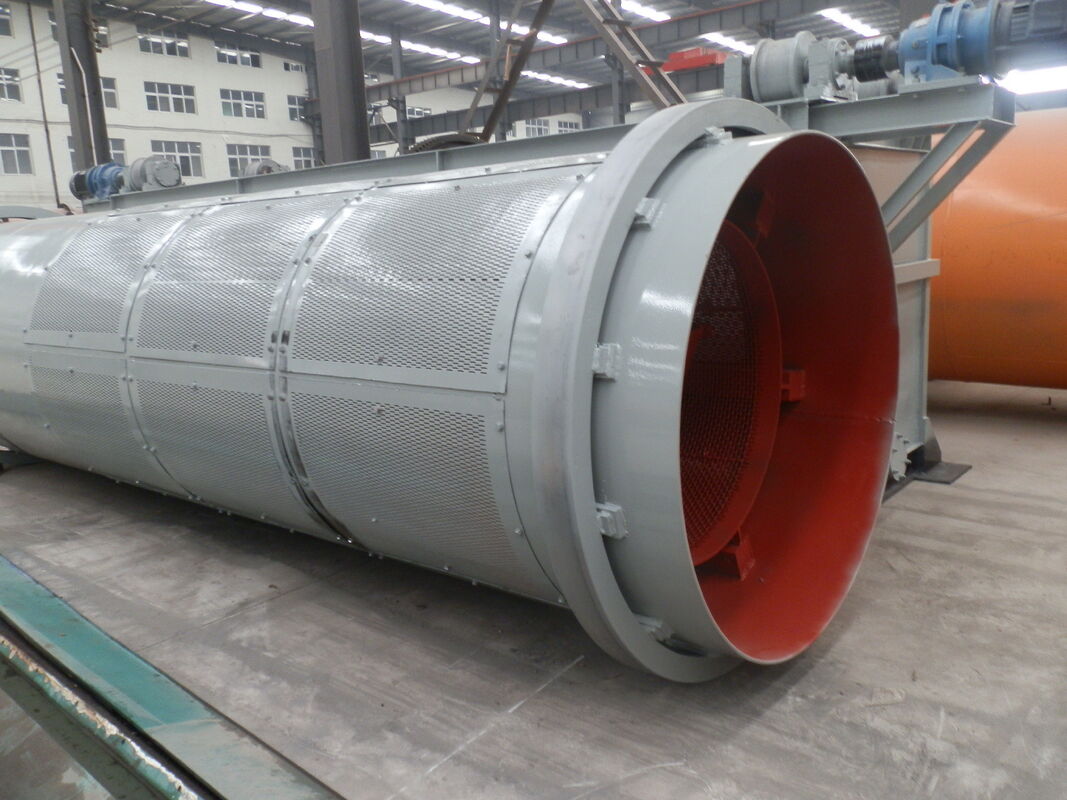

Rotary Ore Washer for Mining Operations and Mineral Processing Facilities

Rotary Ore Washer is a robust and efficient industrial machine designed for the primary cleaning, scrubbing, and de-agglomeration of rocks, ores, and minerals. It is an essential piece of equipment in mining, quarrying, and aggregate processing operations, effectively removing clay, dirt, silt, and other contaminants from raw material to prepare it for downstream processing.

Key Features & Advantages

·         High-Efficiency Washing: The internal lifters and continuous rotational motion ensure thorough tumbling and scrubbing action, effectively disintegrating and dissolving clay coatings and soft impurities from stone surfaces.

·         Robust Construction: Built for demanding environments, the drum is constructed from heavy-duty, abrasion-resistant steel plate. Internal lifters are often reinforced with wear-resistant liners to ensure a long operational lifespan with minimal maintenance.

·         Simple & Reliable Operation: With a straightforward design featuring a central drum driven by a motorized gear and pinion system, this washer offers reliable performance with low operational complexity and easy maintenance.

·         Versatile Application: Suitable for a wide range of materials, including limestone, granite, gravel, sand, and various metallic ores. It can handle a variety of feed sizes.

·         Water Efficiency: Designed to use water effectively, the drum often includes spray bars that introduce water inside the drum, ensuring optimal use for cleaning while slurry and wastewater are discharged through the outlet.

Working Principle
The raw material is fed into the inclined rotating drum at the elevated end. As the drum rotates, the internal lifters pick up the material and drop it through a stream of water introduced via internal spray bars. +8615617816797 This combined tumbling and hydraulic action vigorously scrubs the particles against each other, breaking down and washing away impurities. The cleaned material travels towards the lower discharge end due to the drum’s inclination and rotation, while the wastewater and fine sludge overflow through weirs or are separated via screens.

Typical Applications

·         Washing crushed rock and aggregate to produce high-quality, clean construction materials.

·         Removing clay and soft oxide coatings from ore before further mineral processing (e.g., crushing, screening, or gravity separation).

·         Cleaning and preparing gravel for use in concrete and asphalt.

·         Scrubbing and desliming industrial minerals.

Specifications (May Vary by Model)

·         Drum Diameter: Ranges from 1.5m to 3.5m (5ft to 11.5ft)

·         Drum Length: Customizable, typically from 4m to 15m (13ft to 49ft)

·         Drive: Electric motor with gear reducer and pinion

·         Inclination: Adjustable, typically between 1-5 degrees

·         Feed Size: Can process material from 5mm up to 150mm+ depending on configuration.

Rotary Ore Washer is a fundamental solution for operations requiring reliable and efficient material cleaning to enhance product value and meet specification standards.
